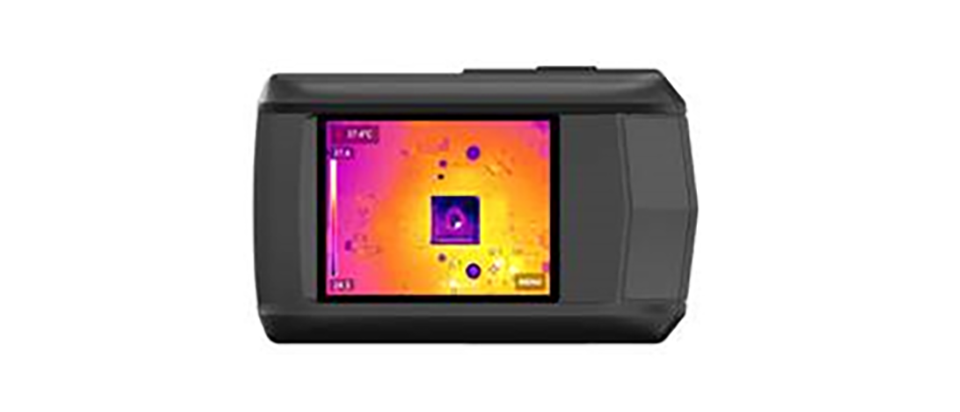

Pocket Thermography Camera
It Pocket Series is equipped with a high-resolution VOx detector, an 8 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate the hidden problems and accurately measure abnormal temperature. The wide temperature range of -20°C to 400°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspections, and the Wi-Fi function allows the Pocket to share images in real time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.
Key Feature
| Infrared Image | |
| IR Resolution | 256 × 192 (49, 152 pixels) |
| NETD | < 40 mK (@ 25°C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.5 mm |
| F-number | F1.1 |
| Field of View (FOV) | 50° × 37.2° |
| Spatial Resolution (IFOV) | 3.43 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Visual Camera | 3264 × 2448 (8 MP) |
| Display | 640 × 480 Resolution, 3.5″ LCD Touch Screen with auto-rotation |
| Screen Brightness | Manual |
| Digital Zoom | 1.0x to 4.0x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F ) |
| Accuracy | Max. (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual/1-Tap Touch-screen |
| Data Storage and Communication | |
| Storage Media | Built-in 16 GB flash memory |
| Image Storage Capacity | Approx. 60,000 Images |
| Annotations | Text note: max. 200 characters |
| Video Storage Capacity | Approx. 54 hours |
| Video File Format | MP4 video |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| LED Light | Yes |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 218 g (0.481 lb) |

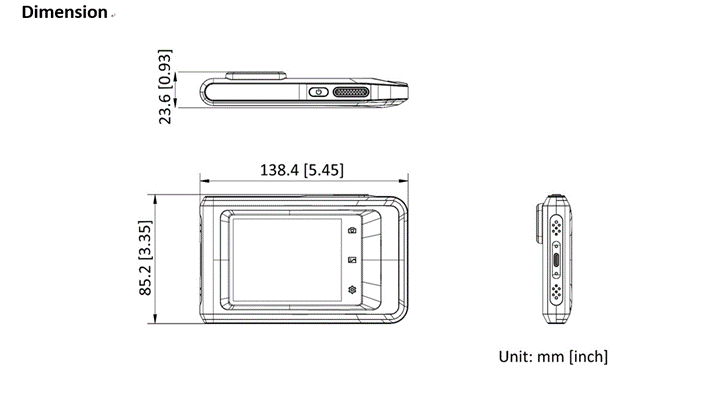

| Dimension | 138.5 mm × 85.2 mm × 23.6 mm (5.45″ × 3.35″ × 0.93″) |
| Tripod Mounting | UNC ¼”-20 |
COMPLIANCE
NOTICE: The thermal series products might be subject to export controls in
various countries or regions, including without limitation, the United
States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult
your professional legal or compliance expert or local government authorities for any necessary
export license requirements if you intend to transfer, export, re-export the
thermal series products between
different countries.
